HOW TO CUSTOMIZE YOUR TITANIUM BIKE FRAME

As an OEM manufacturer, surely COMEPLAY can make custom frames according to your various requirements for the perfect frame. You can decide what your bike will like from choosing tubing materials, tubing shapes, to the decals, your unique logos.

The following guide is just designed to help you provide us with the information we need to build the bicycle frame of your dreams.

CUTOMIZE TI BIKE FRAME

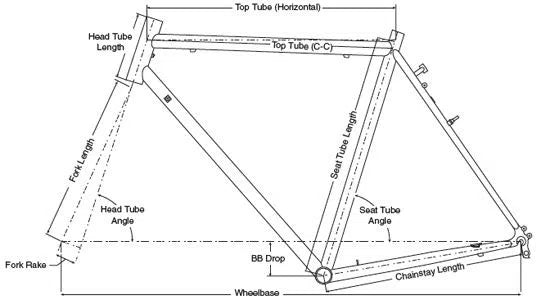

Geometry



A: Seat Tube Length

B: Effective Top Tube Length

C: Head Tube Length

D: Chain Stay Length

E: Bottom Bracket Drop

F: Seat Tube Angle

G: Head Tube Angle>

H: Fork Length

I: Fork Rake



More Details

1. Types

□MTB □Road □Mini velo □BMX □Gravel □Touring □Tandem □Belt drive □Balance

□Recumbent  □E-bike □Folding □Others



2. FRAME FINISH

□Hand-brushed (polished)  □Sandblasted □Anodized



3. HEADTUBE LOGO

□Engraving logo □Laser etching logo



4. Head tube Option

□Standard 1-1/8” (34mm) □Straight 44mm □Straight 41mm  □Tapered



5. Seat post Option

□25.4  □27.2  □30.9  □31.6 □31.8 □34.9



6. BOTTOM BRACKET Width:

□68  □73  □93  □Others



7. BOTTOM BRACKET Style

□Normal BSA Thread □Press-fit



8. Drop out option

□Normal □Sliding □Thru-Axle  □Rohloff  □Breezer-style □Special CNC



9. Drop out spacing

□142mm Non-boost □148mm Boost  □Other



10. Brake Option

□V-brake □Rim-Brake □IS Disc □PM Disc □Flat disc □Others



11. Cable Routing

□External  □Internal  □Di2   ---CABLE ROUTING NOTES



12. CHAIN RING:

□1x  □2x  ---Size:



13. WATER BOTTLE CAGE:

□Seat tube □Top of down tube: □Bottom of down tube



14. WHEEL / TIRE SIZE



15. ADDITIONAL NOTES:
