Titanium ISO Caliper Mount – Precision Disc Brake Tab for Custom Frames
What Is an ISO Caliper Mount?

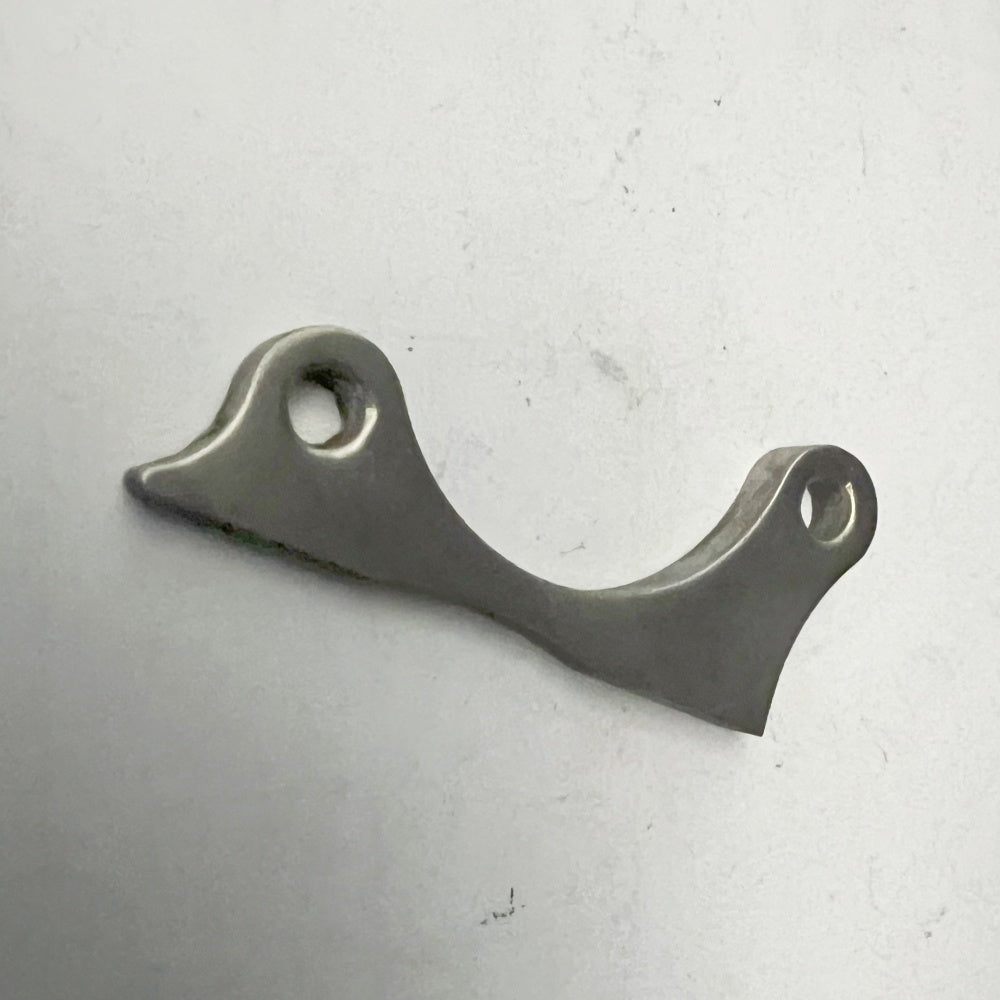

The ISO (International Standard) caliper mount — also known as an IS tab or disc tab — is the unthreaded mounting bracket welded or brazed onto a frame or fork to accept disc brake calipers. ISO mounts feature two 6mm eyelets spaced 51mm apart (center-to-center) , with bolts running parallel to the hub axle.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Ti-6Al-4V (Grade 5 Titanium) |
| Thickness | 6mm |
| Hole Spacing | 51mm (center-to-center – ISO standard) |
| Dropout Compatibility | 38mm OD round dropout |
| Mount Type | ISO (International Standard) / IS tab |
| Application | Disc brake caliper mounting |
| Installation | Requires mitering to match dropout profile |
| Finish | Precision-machined, smooth surface |
Installation Notes

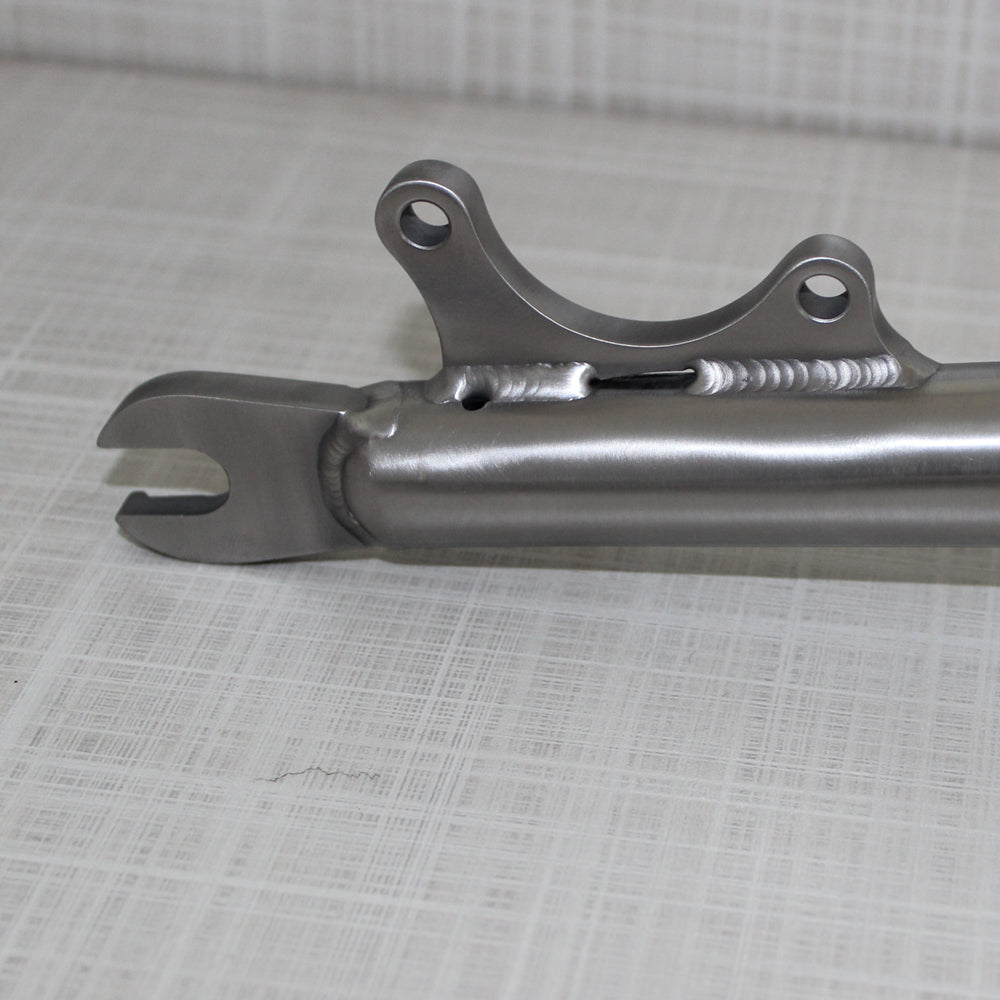

The ISO caliper mount is typically TIG welded onto the frame dropout at the designated mounting position.
Important considerations:
-
Mitering required: The mount must be precisely contoured to match the 38mm dropout radius for proper fit and a clean weld joint
-
Ensure proper alignment before welding — the caliper mount must be positioned correctly relative to the rotor
-
Use appropriate heat control to maintain material properties (Grade 5 titanium requires proper shielding gas)
-
Post-weld cleaning recommended for cosmetic finish
Questions or Custom Orders?
Need different dimensions, dropout size, or have a specific requirement?
