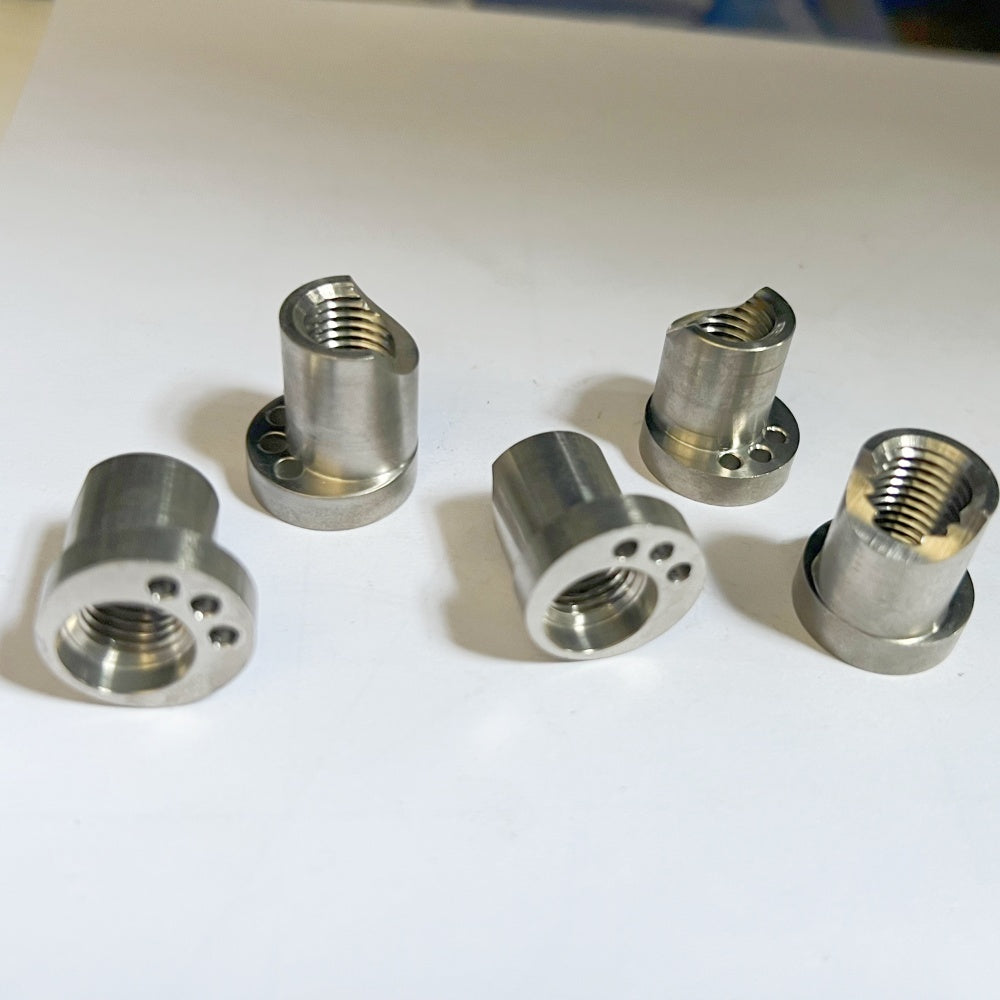

titanium Cantilever Brake Bosses--V-Brake & Cantilever Mounts for Custom Frames

$15.00

Tax included.

What Is a Cantilever Brake Boss?

The cantilever brake boss (also known as a brake stud or brake post) is the threaded mounting point that is welded or brazed into bicycle fork legs and seat stays to accept cantilever or V-brakes. These bosses are essential for:

🚲 V-brakes (linear-pull brakes) – Common on mountain bikes, hybrids, and touring bikes
🛡️ Cantilever brakes – Traditional choice for cyclocross, touring, and vintage road bikes

Technical Specifications

Specification	Details
Material	Ti-6Al-4V (Grade 5 Titanium)
Outer Diameter (OD)	18mm
Thread Size	M10 × 1.25 (standard cantilever/V-brake thread)
Application	V-brake and cantilever brake installations
Package	price is for 1 pair (2pcs in one set)

Note: Requires mitering to match seatstay/ fork leg geometry.

Installation Notes

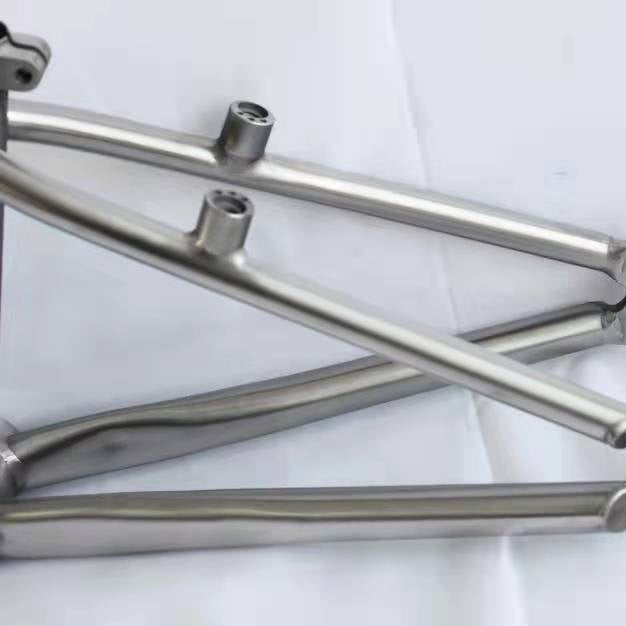

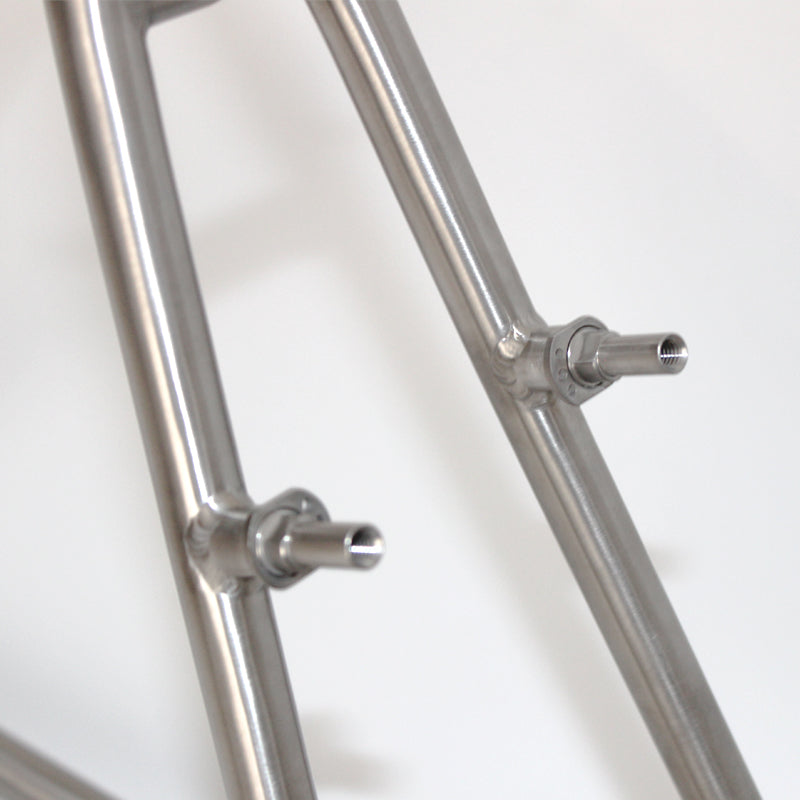

The cantilever brake boss is typically TIG welded or brazed into the frame at the designated mounting position.

Important considerations:

Mitering required: The boss must be mitered (angled) to match the seatstay or fork leg geometry for proper fit and a clean weld joint
Ensure proper alignment before welding — brake bosses must be parallel and positioned correctly for proper brake function
Use appropriate heat control to maintain material properties
Post-weld cleaning recommended for cosmetic finish

Compatibility

These brake bosses are compatible with all standard cantilever and V-brake systems that use M10 x 1.25 threaded mounting studs. Always verify the specific requirements of your chosen brake system before ordering.

Questions or Custom Orders?

Need different dimensions, thread specification, or have a specific requirement?
