TITANIUM Race & Freestyle BMX Frames titanium BMX Flatland Frames

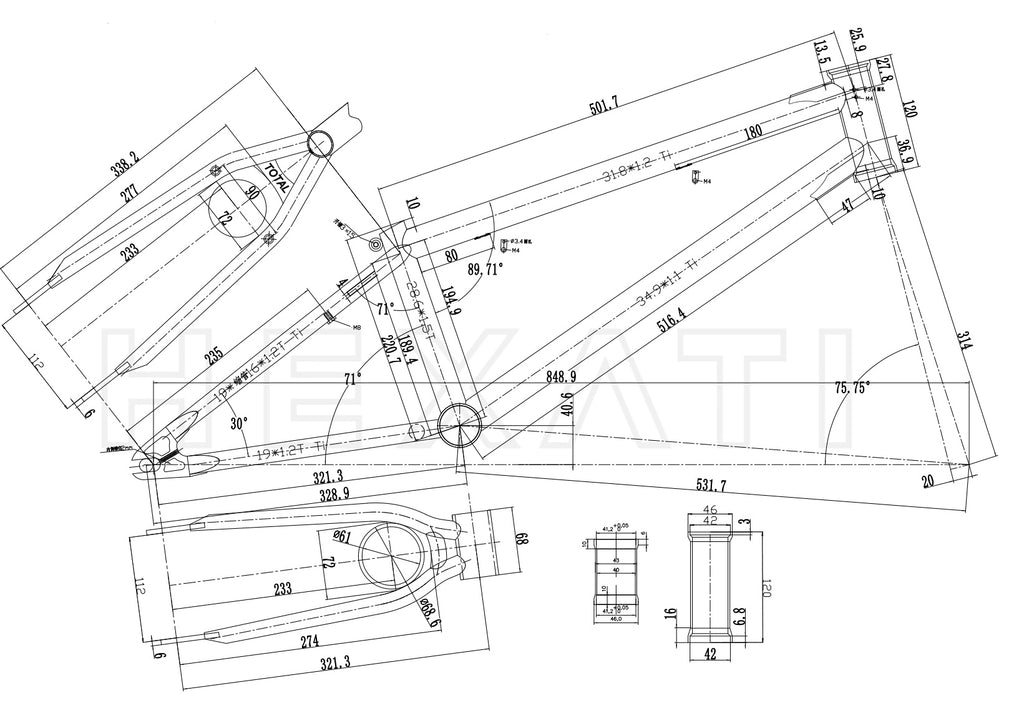

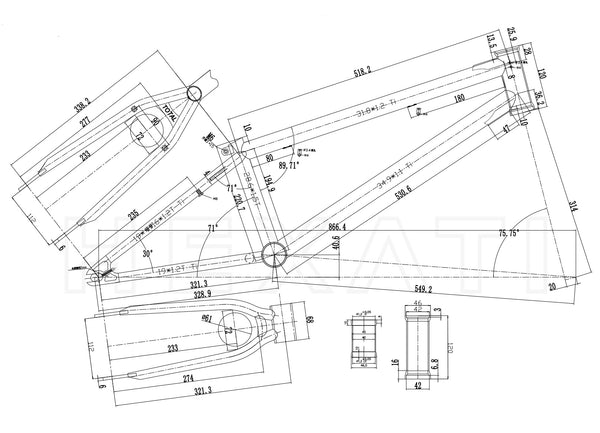

Geometry
| Item | A. top tube length 上管长度 |
B. Chain stay length 尾叉长度 |
C. Head tube angle 头管角度 |
D. Seat tube angle 中管角度 |
E. BB height BB高度 |
F. Stand over height 中管长度 |
| 1 | 18“（457.2mm） | 300.4mm | 75° | 71° | 42.5mm | 179.6mm |
| 2 | 19.75“（501.7mm） | 328.9mm | 75.75° | 71° | 40.6mm | 189.4mm |
| 3 | 20.4“（518.2mm） | 328.9mm | 75.75° | 71° | 40.6mm | 194.9mm |
| 4 | 20.7“（525.8mm） | 328.9mm | 75.75° | 71° | 40.6mm | 194.9mm |
| 5 | 21“（533.4mm） | 328.9mm | 75.75° | 71° | 40.6mm | 194.9mm |
Descripton
With its lightweight and strong titanium material, this BMX frame is designed for the high end user who demands the highest performance. The frame is designed for maximum control and responsiveness, allowing for superior handling.
Highest quality Titanium Gr9(Ti3AI2.5V) & Gr5(Ti6Al4V) used and excellent build quality.

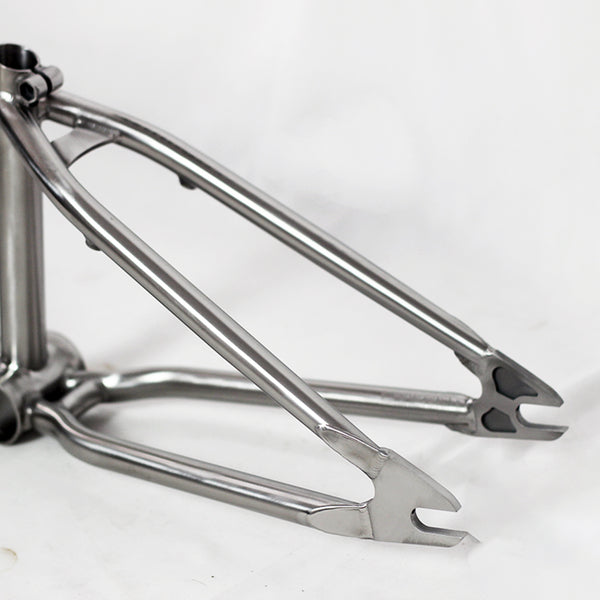

Titanium Grade 9 (Ti-3Al-2,5V) Welded in an oxygen-free atmosphere and with an argon purge. Dropouts with control tension bolts to keep the hub in the correct position and avoid axial movements. Reinforced rear triangle to avoid losing resistance but improving shock absorption.
Material: Titanium Gr9(Ti3AI2.5V) & Gr5(Ti6Al4V)
Seat Clamp: integrated
Seat Post Diameter: 25.4mm
Bottom Bracket: Mid BB
Customize
Any customization needs please contact info@tibicycles.com or leemom.yang@hotmail.com
