HEXATI 45g Titanium 3D Printed Rear Derailleur Hanger Conversion Kit | 142x12mm Thru Axle for G Line with 4 Ti Bolts
Ultra‑light 45g. Aerospace titanium. 3D printed for strength. Convert your G Line to modern 142x12mm thru axle.
Key Features
✓ Full titanium construction – Grade 5 (Ti-6Al-4V), 3D printed using laser powder bed fusion
✓ Ultra‑light kit – 45g total (hanger pair + 4 Ti bolts)
✓ Converts G Line to 142x12mm thru axle – ready for modern disc brake wheelsets
✓ Includes 4 titanium mounting bolts – complete corrosion‑free installation
✓ Optimized 3D printed geometry – increased fatigue life and impact resistance
✓ Designed for original G Line frames – exact fit, seamless integration
✓ Recommended axle: M12x1.5, 160mm length (available separately from HEXATI)
Specifications
| Item | Detail |
|---|---|
| Kit weight | 45g (hanger pair ~40g + bolts ~5g) |
| Material | Ti-6Al-4V (Grade 5 titanium), 3D printed |
| Hub compatibility | 142mm x 12mm thru axle hubs |
| Axle thread pitch | M12 x 1.5 |
| Recommended axle length | 160mm |
| Included bolts | 4 pcs titanium (M5 countersunk) |
| Fitment | Original G Line frames (replaceable dropout system) |
| Derailleur compatibility | Standard direct mount / most Shimano, SRAM, Campagnolo |

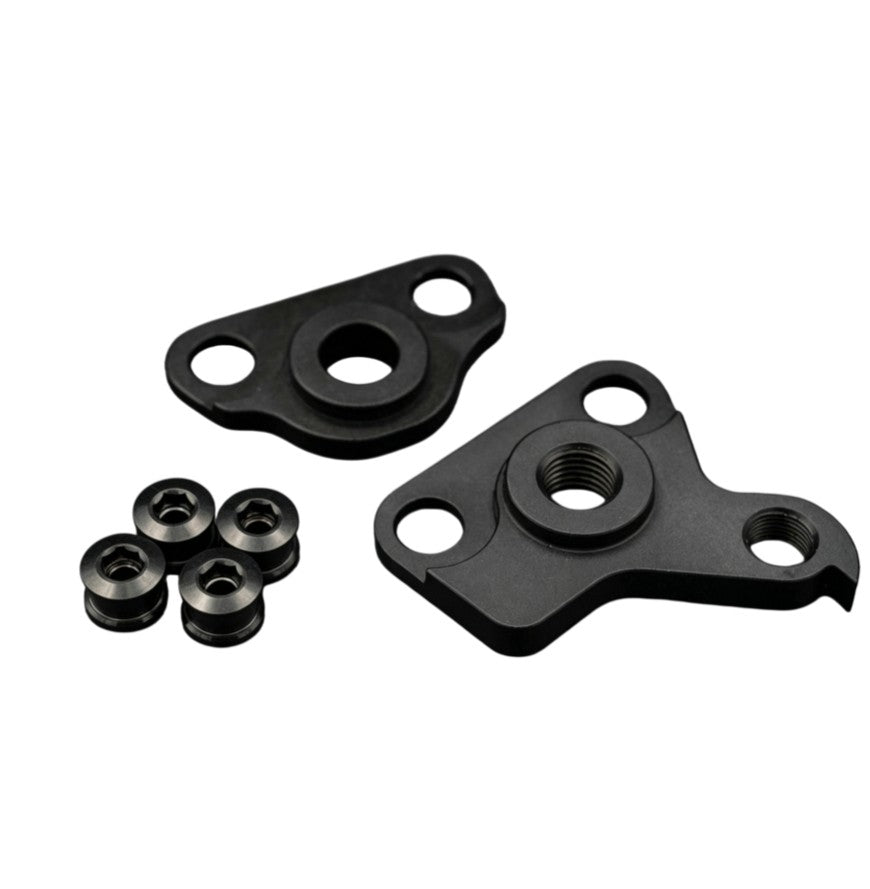

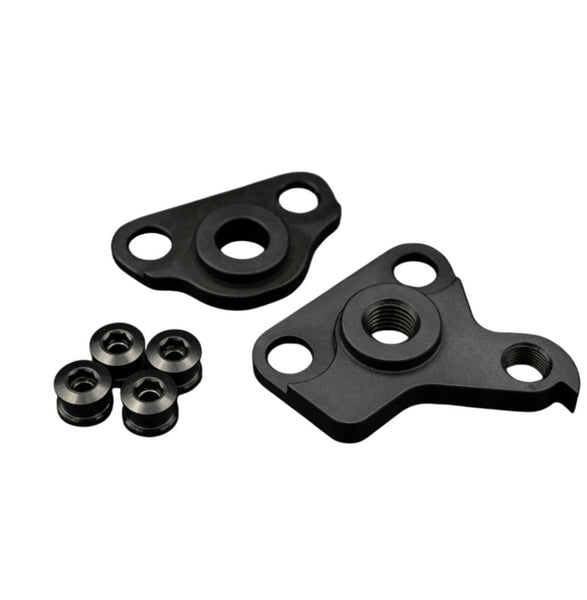

What’s in the Box
-
1x Right rear derailleur hanger (3D printed titanium)
-
1x Left dropout hanger (3D printed titanium)
-
4x Titanium mounting bolts
-
Digital installation guide (QR code)
Thru‑axle is not included. For best performance, pair with our HEXATI M12x1.5 160mm titanium thru‑axle (sold separately).
Compatibility
-
✅ Fits original G Line frames (including folding variants with replaceable dropouts)
-
✅ Converts to 142x12mm thru axle hubs (e.g., DT Swiss, Hope, Shimano, Industry Nine)
-
✅ Requires M12x1.5 thread axle – we strongly recommend 160mm length
Combine this with HEXATI’s 45g titanium hanger kit and a matching titanium thru‑axle for the ultimate lightweight, high‑performance rear end.
Recommended Companion Product
HEXATI M12x1.5 160mm Titanium Thru Axle
Perfectly matched thread and length for this conversion kit. Machined from solid Ti-6Al-4V, weight only ~38g. Available now – ask us for bundle deals.
